To easily identify Permco EVO Vane Port Locations, please reference the following images for Single, Double, and Triple Vane Units.

Legend: S = Suction PortP# = Port Number

Single Unit

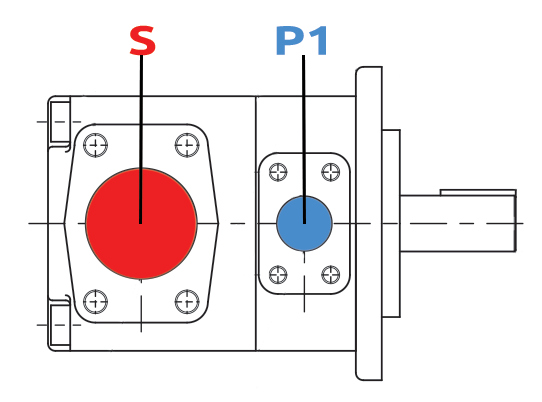

EVO Vane Single Unit PortsDouble Unit
Permco EVO Vane Double UnitTriple Unit

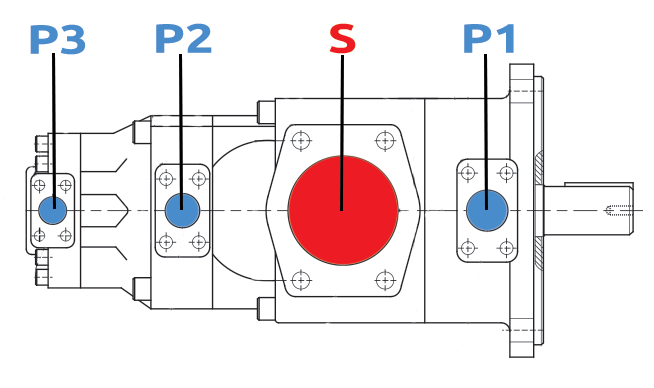

Permco EVO Vane Triple Unit Port Locations
